Crestron DM-NVX-360 4K60 AV over IP Encoder/Decoder with HDR10, Dolby Vision, PoE+, and USB extension – Ideal for UAE installations
Product image
Crestron DM-NVX-360 4K60 AV over IP Encoder/Decoder with HDR10, Dolby Vision, PoE+, and USB extension – Ideal for UAE installations
Product image

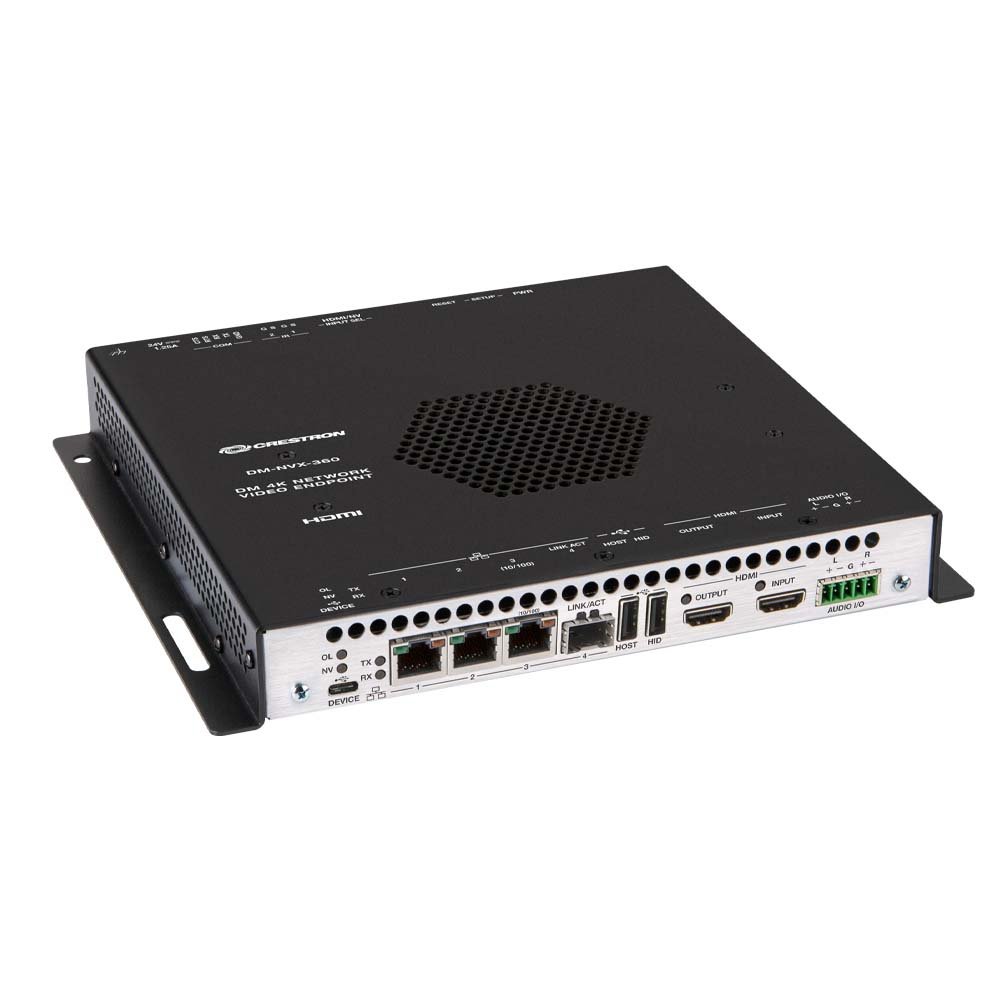

Crestron DM-NVX-360 4K AV over IP Encoder/Decoder for Professional AV Systems – UAE

  • 4K60 AV over IP – Supports 4096×2160 resolution with 4:4:4 color sampling

  • HDR & Dolby Vision – HDR10, HDR10+, Dolby Vision, Deep Color support

  • Audio Support – Multichannel 8‑ch LPCM, Dolby, DTS, stereo analog

  • Flexible Streaming – Pixel Perfect encoding/decoding, RTP, secure RTSP

  • HDCP 2.3 & AES-128 – Ensures copy protection and secure content

  • Switcher & Scaler – 2×1 HDMI/Stream switch, 4K60 video scaler with deinterlacing

  • USB Extension – Connect keyboard, mouse, or PC via USB 2.0 device/host ports

  • PoE+ Powered – IEEE 802.3at Type 2 Class 4 compliant

  • Network Ready – Ethernet 100/1000 Mbps, supports Crestron control integration

  • Compact Design – Metal chassis, fan-cooled, surface/freestanding/rack mount

  • Easy Monitoring – LEDs indicate power, online status, input/output activity

  • UAE Availability – Ideal for professional AV installations in UAE

Add to Wishlist
Add to Wishlist
Categories: , Brand:

Description

FeatureSpecification / Details
Device Type4K AV over IP Encoder/Decoder
Encoding/DecodingEncoder: Pixel Perfect Processing / DM-NVX-D Series
Decoder: Pixel Perfect Processing / DM-NVX-E Series
Video ResolutionsUp to 4096x2160@60Hz 4:4:4, HDR10, HDR10+, Dolby Vision, Deep Color
Audio FormatsMultichannel 8-channel LPCM / HBR 7.1, 2-channel LPCM
Bit RatesEncoder: Fixed (200–950 Mbps), Adaptive, Variable (≤750 Mbps)
Decoder: Stream-dependent
Streaming ProtocolsRTP, SDP
ContainerMPEG-2 transport stream (.ts)
Session InitiationMulticast via secure RTSP
Copy ProtectionHDCP 2.3, AES-128, PKI
Input Signal TypesHDMI w/ HDR10, HDR10+, Dolby Vision, Deep Color, 4K60 4:4:4 (Dual-Mode DisplayPort & DVI compatible)
Output Signal TypesHDMI w/ HDR10, HDR10+, Dolby Vision, Deep Color, 4K60 4:4:4 (DVI compatible)
Switcher2x1 in decoder mode, manual/auto-switching, limited audio breakaway, QuickSwitch HD
Scaler (Decoder Mode)4K60 4:4:4 scaler, motion-adaptive deinterlacing, HDR support, video wall 8x8, widescreen format selection
Audio Inputs/OutputsHDMI, analog stereo, Dolby/DTS formats, LPCM, 24-bit 48 kHz A/D & D/A
Analog PerformanceFrequency Response: 20Hz–20kHz ±0.5 dB, S/N Ratio >95dB, THD+N <0.005%, Stereo Separation >90dB
Ethernet / Networking4x Ethernet (PoE+ on port 1), TCP/IP, UDP/IP, DHCP, SSL/TLS, Active Directory, Multicast TTL, control system integration
USB PortsUSB 2.0 Type-C (device), USB Type-A (host/HID), 500mA @ 5V
RS-232 / IR2-way RS-232 up to 115.2k baud, 1-way IR up to 1.1 MHz
HDMI CompatibilityHDCP 2.3, EDID, CEC
IndicatorsLEDs for PWR, SETUP, RESET, INPUT SEL, OL, NV, TX, RX, Ethernet 1-4, HDMI I/O
PowerPoE+ IEEE 802.3at Type 2 Class 4 (25.5 W), Optional 24VDC Power Pack (PW-2412WU), 20 W typical
EnvironmentalTemp: 32°–104°F (0–40°C), Humidity: 10–90% RH, Heat Dissipation: 74 BTU/hr
Enclosure / MountingMetal chassis, fan cooled, integral flanges, freestanding, surface mount, or single rack rail
DimensionsH: 8.61 in (219 mm), W: 9.27 in (236 mm), D: 1.25 in (32 mm)
Weight2.0 lb (0.91 kg)
